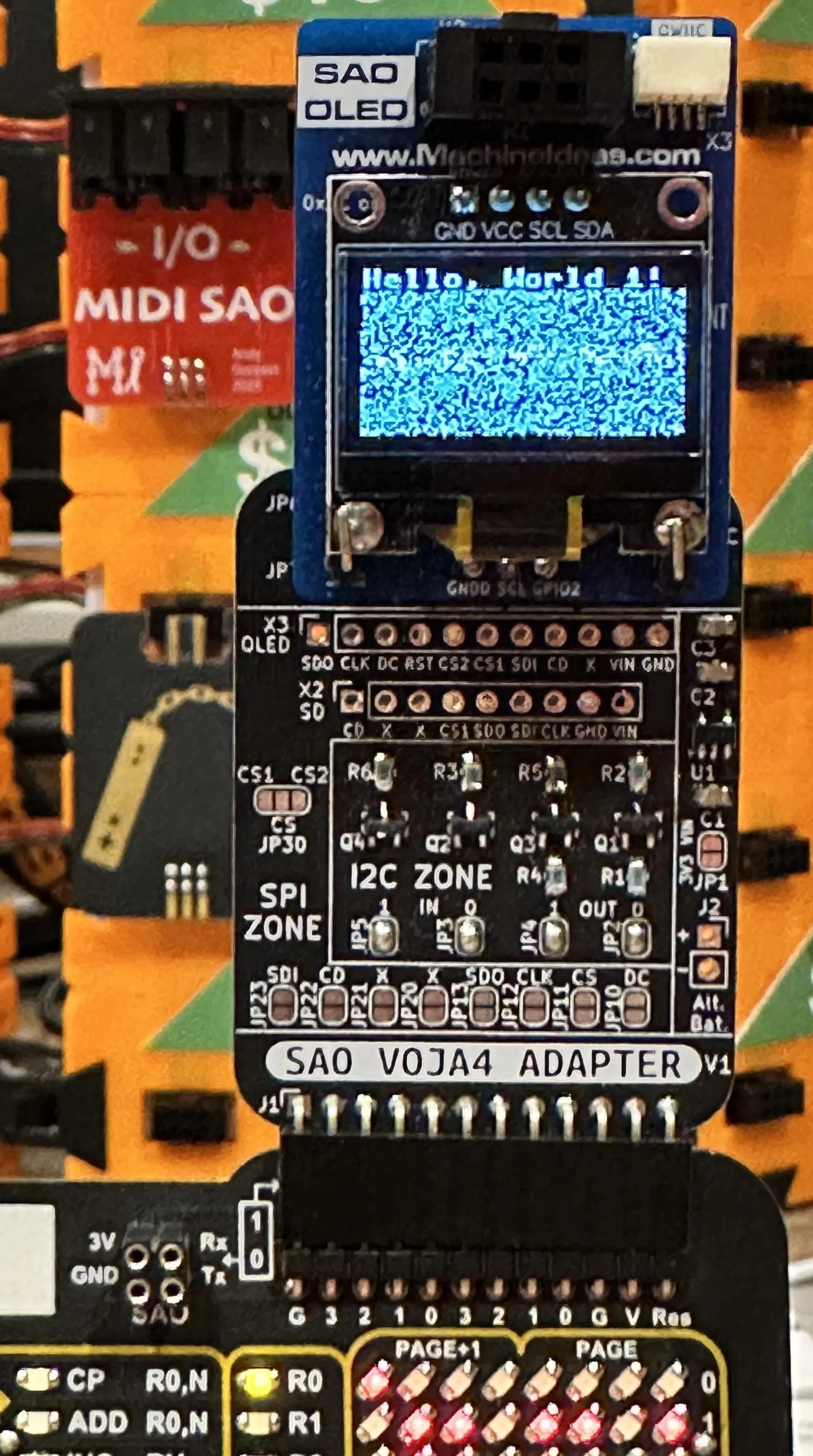

This adapter enables the Voja 4 Bit Computer Badge to connect to SAO devices which use I2C, along with a header for SPI-based communication as well.
Using this adapter requires compatible bit-banged firmware on the Voja4. The Voja4 does not natively offer I2C and SPI communication, but you can control four output signals, and four input signals, separately. This board bridges those two sets of four signals into one set of GPIO signals.
